Series
BS SeriesNC swing beam shear.
Dener
BS NC Swing BeamDener BS Series NC Swing Beam Shear
NC swing beam shear for shops that need reliable hydraulic sheet cutting, NC backgauge control, manual blade gap adjustment, and straightforward blank preparation.
The BS Series NC swing beam shear is built for dependable hydraulic sheet cutting with NC backgauge control, manual blade gap adjustment, motorized ball screw backgauge movement, guarding, sheet support arms, squaring support, and straightforward blank preparation.
Dener Shears
Capacity
6-20 mmAvailable mild steel capacity range for standard BS models.Length
3120-6240 mmAvailable cutting length range across BS models.Control
HT 071NC controller features.Machine overview
Quick Specs To Confirm Before Pricing
Use these machine highlights as the first-screen buying summary. Final capacity, option availability, freight, installation, training, and support scope must be confirmed during RFQ review.
Key features
Dener BS Series NC Swing Beam Shear Key Features
Review the hardware, workflow, and operator-focused features that matter before the machine is quoted.
BS Swing Beam Platform
The BS Series is the NC swing beam path for shops that need a proven hydraulic shear for straightforward material prep.

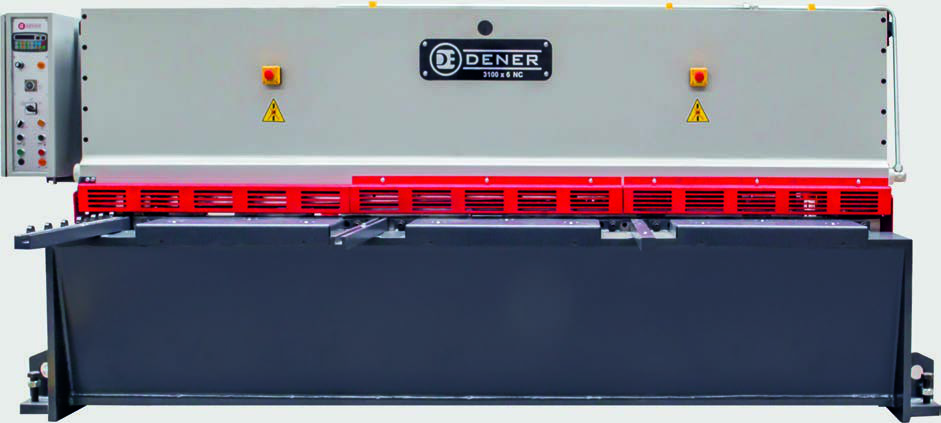

Front Support And Squaring
Standard equipment includes sheet support arms, squaring support, sheet slider table, and back slider features on the machine package.
Applications
Best-Fit Applications
Review the shop work, part geometry, capacity needs, operator workflow, and production goals before selecting the right machine.
General fabrication
Everyday blank preparation
Lower-complexity shearing
Budget-conscious sheet cutting
Shops upgrading older manual or basic shears
Features & benefits
Key Buying Points For The BS Series NC Swing Beam Shear
NC swing beam shear workflow
The HT 071 compact single-axis controller supports backgauge control, retract, stroke counter, and program memory up to 99 programs with 20 steps.
Motorized ball screw backgauge
A motorized ball screw backgauge supports repeat cuts, blank size consistency, and easier material preparation.
Practical options
Longer front support arms, spare blades, hydraulic oil cooler, pneumatic sheet support, light curtain, and motorized blade gap options can be matched to the shop workflow.
Downloads
Machine Documents & Facility Review
Review machine documents, floor layout needs, power requirements, and facility details with Blacktop before finalizing the equipment package.
Request Machine DocumentsMachine overview
Technical datasheet
Floor layout review
Power and facility requirements
RFQ form
Request Pricing For Dener BS Series NC Swing Beam Shear
Send the core buying inputs so sales can confirm the right machine, options, support path, and quote requirements.
Quote Request
Need a Dener BS Series NC swing beam shear?
Send material type, thickness range, cut length, production volume, backgauge needs, and floor space so Blacktop can compare the BS Series shear path.
