Best For
Production sheet metal cuttingIdeal for shops cutting mild steel, stainless, aluminum, and other sheet materials in a controlled enclosed platform.

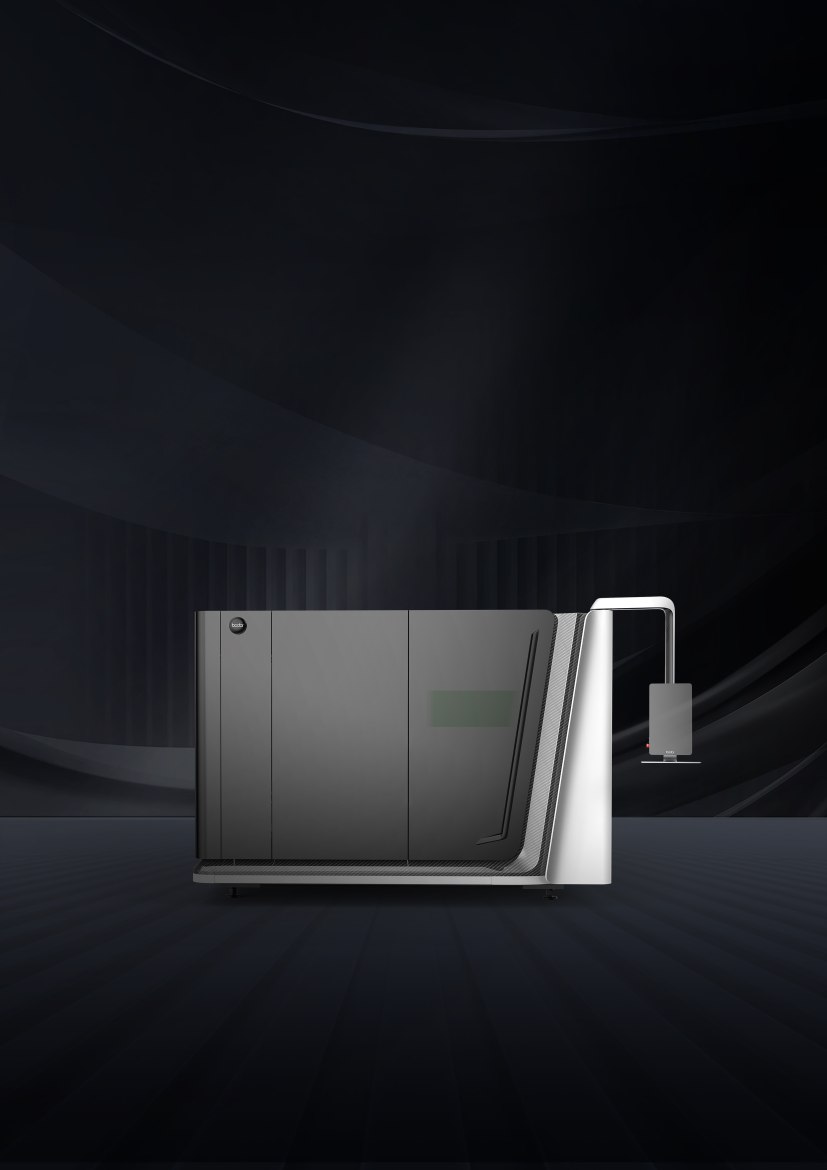

Bodor P Series
Enclosed Fiber Laser for Production Sheet Cutting
A fully enclosed sheet laser platform built for shops that need clean operation, reliable cutting performance, and efficient material flow.
The P Series is a strong fit for fabrication shops moving beyond entry-level cutting and into higher-volume production. With an enclosed design, pallet changer workflow, BodorThinker control, and BodorGenius laser head technology, it gives operators a safer, cleaner, and more efficient way to process sheet metal.
EnclosedSheet LaserPallet ChangerProduction Cutting
Machine Type
Enclosed fiber laserDesigned for safer operation, cleaner cutting areas, and better control of fumes, sparks, and laser exposure.Workflow
Pallet changer productionHelps reduce load/unload downtime and keeps the machine cutting instead of waiting.Quote Notes
Configured to your applicationPower level, table size, automation, assist gas setup, and options are matched to your material mix and production goals.Production advantage
Built for Serious Sheet Metal Production
The Bodor P Series is not just an enclosed fiber laser. It is a production platform built for shops that need speed, safety, consistency, and smarter material flow.
Key features
Key Features
Review the enclosure, machine frame, controls, cutting head, and workflow features that support production sheet cutting.

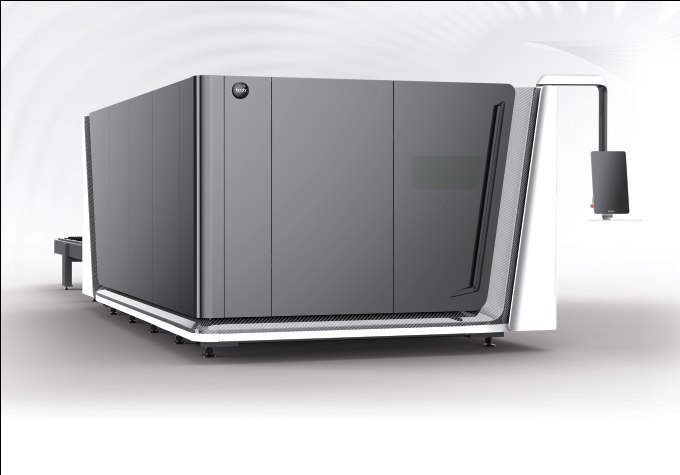

Fully Enclosed Cutting Area
The enclosed design helps contain sparks, fumes, and laser exposure while giving operators a cleaner and safer work environment. For shops running daily production, that means better control of the cutting area and a more professional setup on the floor.
Why it matters- Helps improve operator protection
- Supports smoke and dust control
- Keeps the cutting process contained
- Better fit for production environments

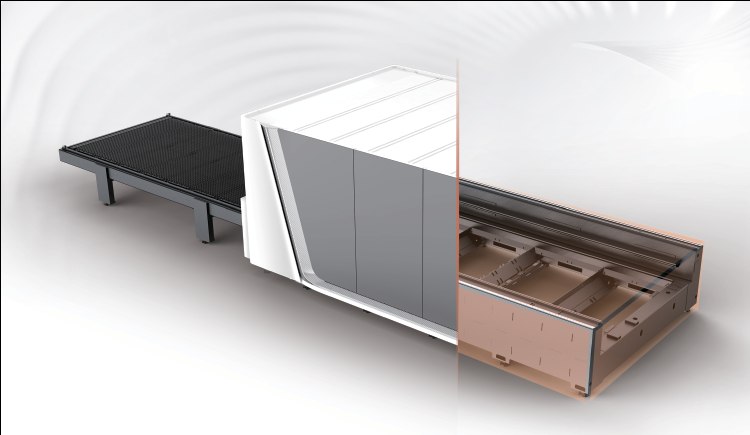

Heavy-Duty Segmented Welded Bed
The P Series uses a heavy-duty segmented welded bed designed to support cutting stability, absorb vibration, and handle the heat and abuse that comes with fiber laser production. If heat-affected sections need attention over time, the segmented design helps simplify maintenance compared to a one-piece platform.
Why it matters- Supports long-term cutting accuracy
- Helps absorb shock and vibration
- Built for production use
- Easier serviceability on affected bed sections

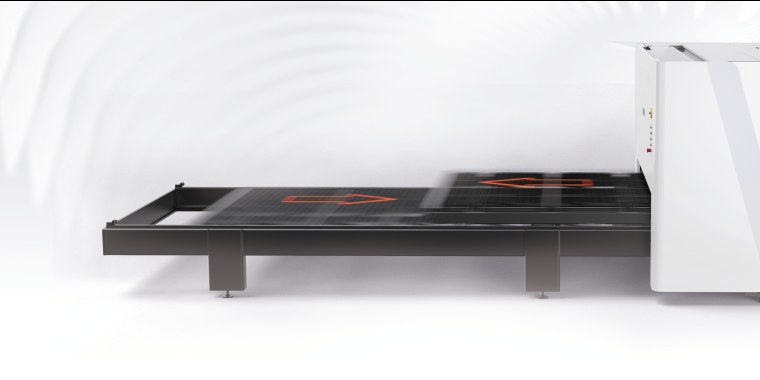

Pallet Changer Workflow
The pallet changer keeps the laser working instead of waiting. Operators can unload finished parts and stage the next sheet while the machine continues cutting, helping reduce idle time and improve daily throughput.
Why it matters- Reduces load and unload delays
- Helps keep production moving
- Improves operator workflow
- Better fit for high-volume cutting

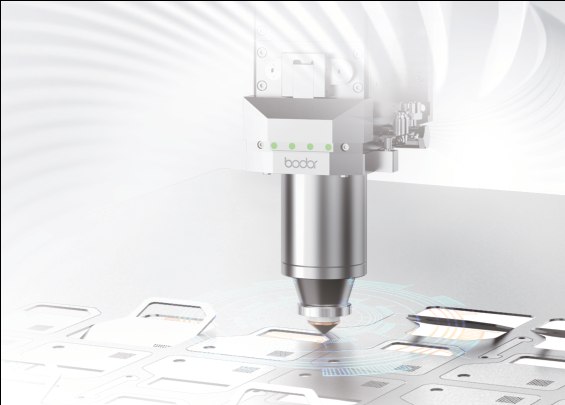

BodorGenius Laser Head
The BodorGenius laser head is built to support fast, accurate cutting with automatic focus adjustment, distance detection, cooling, and lens protection features. It helps operators move between materials and thicknesses with less manual setup.
Why it matters- Supports cleaner cut quality
- Helps reduce setup time
- Improves consistency across different materials
- Protects critical cutting components
BodorThinker Control
BodorThinker gives operators the tools they need to manage cutting programs, nesting, file imports, batch processing, and daily production workflow from one control platform.
Why it matters- Supports CAD/CAM workflow
- Helps simplify programming
- Handles common production file types
- Improves cutting process control
Intelligent Setup Functions
The P Series supports smart setup features such as automatic nozzle replacement, calibration, obstacle detection, edge seeking, cleaning functions, and visual locating. These features help reduce operator guesswork and keep setup moving faster.
Why it matters- Reduces manual adjustment
- Helps prevent setup mistakes
- Saves operator time
- Supports more consistent cutting
Cutting Process Database
Built-in cutting data helps operators choose efficient cutting parameters for common materials and gas processes, including oxygen and nitrogen cutting strategies.
Why it matters- Helps operators dial in cutting faster
- Supports repeatable process settings
- Improves consistency between jobs
- Reduces trial-and-error setup
Bodor Cloud
Bodor Cloud gives shops better visibility into machine status, alarms, maintenance reminders, production data, and remote service support. For busy production teams, that means fewer blind spots and better machine management.
Why it matters- Tracks machine status and alerts
- Supports maintenance planning
- Helps manage production data
- Enables remote support access
Applications
Best-Fit Applications
This laser is built for shops that care about cut quality, repeatability, efficient use of floor space, and a cleaner enclosed cutting environment.
Precision Sheet Metal Parts
Ideal for shops cutting parts where edge quality, fine detail, and repeatability matter.
Thin Material and Fine-Feature Work
A strong fit for applications where thin-sheet stability and precise feature cutting affect final part quality.
Shops With Limited Floor Space
Good for facilities that need enclosed laser capability without giving up excessive floor space.
OEM and Repeat Production Work
Works well for manufacturers producing repeat parts that demand consistent cut quality from job to job.
Upgrading From Older Cutting Equipment
A smart fit for shops moving beyond older laser or plasma systems to improve finish quality, speed, and process control.
Clean, Enclosed Production Environments
Well suited for shops that want better containment of sparks, fumes, and laser exposure in busy production areas.
Buyers Comparing Premium Cutting Platforms
A solid option for companies evaluating higher-end enclosed laser systems based on cut quality, machine design, and operator experience.
Laser advantages
Why Shops Choose the P Series
The P Series gives fabricators a strong balance of cutting performance, enclosure safety, operator workflow, and production capability. It is built for shops that are ready to cut faster, reduce outsourcing, improve part consistency, and move more work through the same floor space.
Production-Ready Enclosure
A serious sheet laser for shops that want clean cutting, better operator separation, and a machine built for daily production.
Fast Pallet Workflow
Load the next sheet while the machine is cutting so the laser spends more time making parts and less time waiting on material.
High-Power Cutting Platform
Power and format options give growing shops room to cut faster, process thicker material, and take on more demanding work.
Smart Cutting Controls
Programming, nesting, autofocus, edge finding, and setup tools help operators move from file to finished parts with fewer slowdowns.
Built For Long Runs
A segmented bed, table protection, monitoring, and service-focused design help support uptime when the machine becomes a core production asset.
Automation Path
Pair the laser with loading, unloading, or tower automation when the goal is higher throughput with less manual sheet handling.
P Series specs
Technical Areas To Review Before Pricing
Use these buying categories to narrow the right P Series configuration before the final quote.
Technical data
Technical Specifications
Specifications may vary by configuration and are subject to change. Confirm final specifications before purchase.
P Series
All-Around Sheet Metal Fiber Laser Cutting Machine
| Model | Working Area | Laser Power | Positioning Accuracy | Repositioning Accuracy | Max Linkage Speed | Max Acceleration |
|---|---|---|---|---|---|---|
| P12 | 41 x 8.5 ft | 60/40/30/24/20/12 kW | +/-0.0006 in/ft | +/-0.0012 in | 656 ft/min | 2.8 G |
| P8 | 26.4 x 8.2 ft | 40/30/24/20 kW | +/-0.0006 in/ft | +/-0.0012 in | 656 ft/min | 2.8 G |
| P6 | 21.3 x 8.2 ft | 60/40/30/24/20/12 kW | +/-0.0006 in/ft | +/-0.0012 in | 656 ft/min | 2.8 G |
| P4 | 13.1 x 6.5 ft | 60/40/30/20/12/6 kW | +/-0.0006 in/ft | +/-0.0012 in | 656 ft/min | 4.0 G |
| P3 | 10 x 5 ft | 60/40/30/20/12/6/3 kW | +/-0.0006 in/ft | +/-0.0012 in | 656 ft/min | 4.0 G |
P12
- Working Area
- 41 x 8.5 ft
- Laser Power
- 60/40/30/24/20/12 kW
- Positioning Accuracy
- +/-0.0006 in/ft
- Repositioning Accuracy
- +/-0.0012 in
- Max Linkage Speed
- 656 ft/min
- Max Acceleration
- 2.8 G
P8
- Working Area
- 26.4 x 8.2 ft
- Laser Power
- 40/30/24/20 kW
- Positioning Accuracy
- +/-0.0006 in/ft
- Repositioning Accuracy
- +/-0.0012 in
- Max Linkage Speed
- 656 ft/min
- Max Acceleration
- 2.8 G
P6
- Working Area
- 21.3 x 8.2 ft
- Laser Power
- 60/40/30/24/20/12 kW
- Positioning Accuracy
- +/-0.0006 in/ft
- Repositioning Accuracy
- +/-0.0012 in
- Max Linkage Speed
- 656 ft/min
- Max Acceleration
- 2.8 G
P4
- Working Area
- 13.1 x 6.5 ft
- Laser Power
- 60/40/30/20/12/6 kW
- Positioning Accuracy
- +/-0.0006 in/ft
- Repositioning Accuracy
- +/-0.0012 in
- Max Linkage Speed
- 656 ft/min
- Max Acceleration
- 4.0 G
P3
- Working Area
- 10 x 5 ft
- Laser Power
- 60/40/30/20/12/6/3 kW
- Positioning Accuracy
- +/-0.0006 in/ft
- Repositioning Accuracy
- +/-0.0012 in
- Max Linkage Speed
- 656 ft/min
- Max Acceleration
- 4.0 G
Final P Series configuration is matched to the selected power, table size, enclosure, assist gas, dust collection, and automation package.
