Max linkage speed
100 m/mini7 and i5 table value, equal to 328 ft/min.
Bodor
Compact ModelBodor i Series
Compact sheet fiber laser metal cutting machine with complete protection.
The Bodor i Series is the compact sheet laser option for shops that need enclosed fiber laser cutting in a smaller footprint, with BodorThinker control, BodorGenius cutting head support, safety monitoring, intelligent alarms, and i7 pull-out table access.
Sheet Lasers
Acceleration
1.5GCatalog table lists 1.5G max acceleration for i7 and i5.Laser power range
1.5 kW to 12 kWAvailable power varies by i Series configuration, with i7 extending into higher-power selections than i5.Compact formats
i7 / i5The uploaded i Series PDF technical table lists i7 and i5 models.Production advantage
Why This Laser Deserves A Look
This is where the machine starts to make money: faster cutting, cleaner workflow, better uptime, and a path to automation when your shop is ready.
Key features
Bodor i Series Key Features
Review the hardware, workflow, and operator-focused features that matter before the machine is quoted.

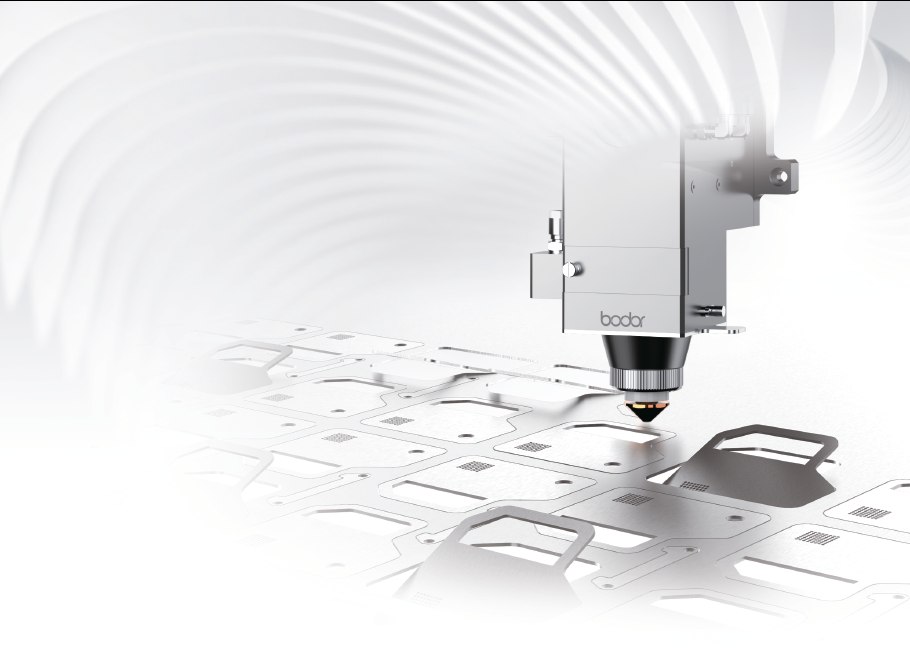

Safety Following Module
The safety following module helps maintain distance between the laser head and workpiece, reducing collision risk during compact sheet cutting.

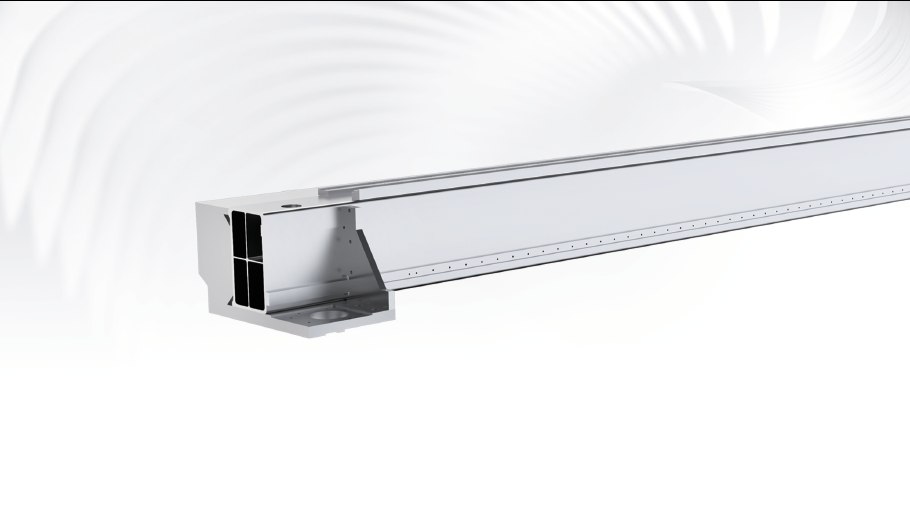

Stretched Aluminum Gantry
The stretched aluminum gantry gives the compact i5 platform the rigidity and response needed for fast everyday sheet cutting.

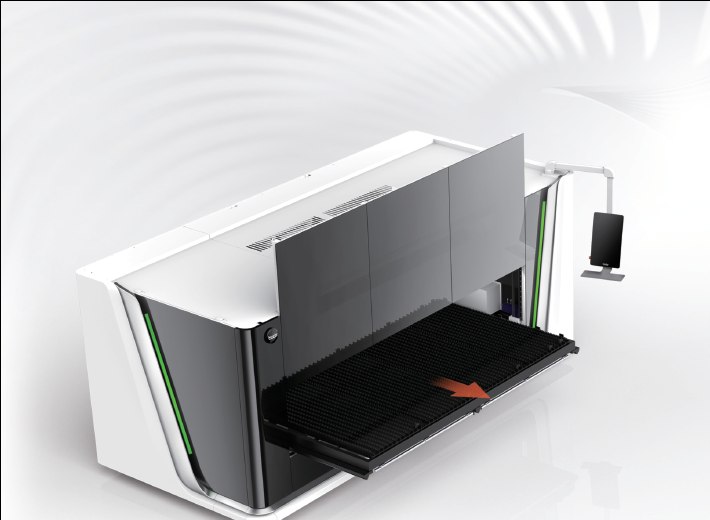

Pull-Out Table
The i7 pull-out table improves loading access in tight layouts, with electric table and vertical-door options available for faster handling.

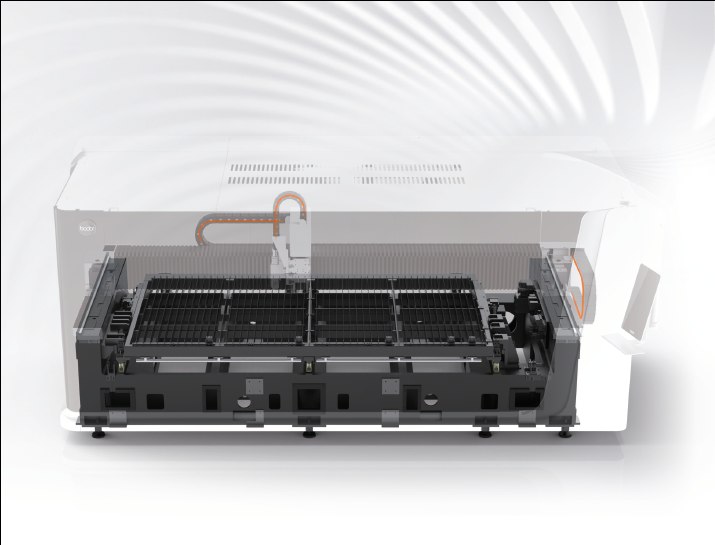

Lubrication And Travel Protection
Automatic lubrication, level alarms, and travel protection help keep the machine operating inside its working range with fewer avoidable interruptions.
Bodor Cloud
Bodor Cloud helps track machine status, processing data, reports, maintenance reminders, and remote support access for better production visibility.
Applications
Best-Fit Applications
This laser is built for shops that care about cut quality, repeatability, efficient use of floor space, and a cleaner enclosed cutting environment.
Precision Sheet Metal Parts
Ideal for shops cutting parts where edge quality, fine detail, and repeatability matter.
Thin Material and Fine-Feature Work
A strong fit for applications where thin-sheet stability and precise feature cutting affect final part quality.
Shops With Limited Floor Space
Good for facilities that need enclosed laser capability without giving up excessive floor space.
OEM and Repeat Production Work
Works well for manufacturers producing repeat parts that demand consistent cut quality from job to job.
Upgrading From Older Cutting Equipment
A smart fit for shops moving beyond older laser or plasma systems to improve finish quality, speed, and process control.
Clean, Enclosed Production Environments
Well suited for shops that want better containment of sparks, fumes, and laser exposure in busy production areas.
Buyers Comparing Premium Cutting Platforms
A solid option for companies evaluating higher-end enclosed laser systems based on cut quality, machine design, and operator experience.
Laser advantages
What This i Series Helps Your Shop Do
Compact Production Power
A smaller-footprint enclosed laser for shops that need real cutting capability without giving up too much floor space.
Good First Laser Path
A strong option for shops bringing sheet cutting in-house and wanting a controlled, enclosed machine layout.
Efficient Shop Fit
The compact format helps shops add laser capacity where space, loading access, and workflow all have to be managed carefully.
Cleaner Cutting Cell
The enclosed design helps separate the cutting process from the rest of the shop environment.
Simple Production Workflow
Review table access, material mix, power, and operator workflow around the work the shop wants to pull in-house.
Scalable Buying Decision
Start with the right footprint and power level, then build the package around assist gas, software, service, and growth plans.
Technical data
Technical Specifications
Specifications may vary by configuration and are subject to change. Confirm final specifications before purchase.
i Series
Compact Sheet Metal Cutting Machine
| Model | Working Area | Laser Power | Positioning Accuracy | Repositioning Accuracy | Max Linkage Speed |
|---|---|---|---|---|---|
| i7 | 10 x 5 ft | 12/6/3/1.5 kW | +/-0.0006 in/ft | +/-0.0012 in | 328 ft/min |
| i5 | 3.28 x 4.92 ft | 6/3/1.5 kW | +/-0.0006 in/ft | +/-0.0012 in | 328 ft/min |
i7
- Working Area
- 10 x 5 ft
- Laser Power
- 12/6/3/1.5 kW
- Positioning Accuracy
- +/-0.0006 in/ft
- Repositioning Accuracy
- +/-0.0012 in
- Max Linkage Speed
- 328 ft/min
i5
- Working Area
- 3.28 x 4.92 ft
- Laser Power
- 6/3/1.5 kW
- Positioning Accuracy
- +/-0.0006 in/ft
- Repositioning Accuracy
- +/-0.0012 in
- Max Linkage Speed
- 328 ft/min
i Series configurations include high-speed motion and model-specific table loads. Final configuration is matched to the selected power, table size, and shop workflow.
RFQ form
Request Pricing For Bodor i Series
Send the core buying inputs so sales can confirm the right machine, options, support path, and quote requirements.
Quote Request
Ready to configure a Bodor i Series package?
Send space constraints, sheet size, material mix, and power goals so Blacktop can narrow the right compact Bodor i configuration.
